Fiber Laser Maintenance and Specifications

Shop Area: Rapid Prototyping Tool: Fiber Laser

Procedure Number MT 120-03, Rev. 0

Date 12/13/2023

General

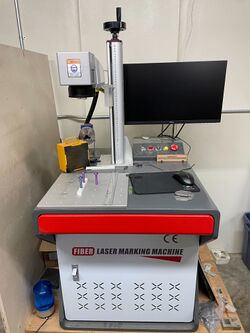

Fiber Laser

Specifications for the 80W SFX Fiber laser.

Reference

• Product page: https://www.sfxlaser.com/Desktop-20W-30W-JPT-MOPA-M7-Fiber-Laser-Engraver-Laser-Marking-Machine
• Controller: https://www.hpaw.com/en/Product/Laser_Control_Card/434.html, https://www.cloudraylaser.com/collections/marking-controller/products/cloudray-jcz-lmcv4-fiber-m-fiber-lite-marking-control-card

List of Specifications

• SFX
• Controller: EZCAD2 BJJCZ
• Lens: 175x175mm

Details

• Application: Laser Engraving
• Applicable Material: Aluminum, Stainless Steel, Brass, Copper, etc. Also some of nonmetal such as nylon, ABS, PES, etc.
• Laser Source: MOPA YDFLP-M7-M-R JPT MOPA M7
• Brand Name: SFX
• Dimension(L*W*H): 190*155*108cm
• Control System Brand: EZCAD
• Weight (KG): 110 KG
• Engraving Area: 175*175mm
• Rotary Axis: D80
• QPulse range: 2-500ns
• Adjustable Frequency Range: 1-4000kHz

Laser Controller

BJJCZ. Model FBLI-B-LV4. Rev: 20200724

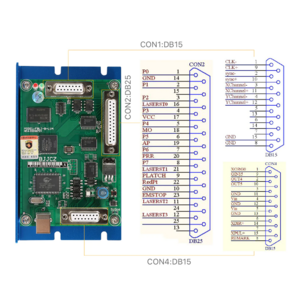

pinout

Laser Power Supply
